Conductive PET plastic sheet roll thermoforming electronics trays PET sheet roll
Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted
- Brand: PULIXIN
- Origin: Shanghai, China
- MOQ: 5 tons
- Thickness: 0.18~1.8mm
- Width: 300~1400mm
- Application: Thermoforming
- Send Inquiry
-
- Email: lindy@pulixin.com
- Phone: +8615221762039
- WhatApp
- Wechat
Description
Description of Conductive PET plastic sheet roll thermoforming electronics trays PET sheet roll
Long-lasting anti-static PET sheet main feature:
*. It has excellent transparency and smoothness and good display effect.
*. Excellent surface decoration performance, can be printed without surface treatment, easy to suppress patterns, easy to metallize (vacuum plating metal layer).
*. Has good mechanical strength.
*. Good barrier performance to oxygen and water vapor.
*. Good chemical resistance and can withstand the erosion of many chemical substances.
*. Environmentally friendly and non-toxic
*. It has good adaptability to environmental protection and can be recycled economically and conveniently. When its waste is incinerated, it does not produce harmful substances that harm the environment.
*. Good thermoforming performance, comparable to ordinary PVC sheets, and can be vacuum formed into PET thermoformed products with excellent performance. PET sheet is considered to be an ideal packaging material that meets environmental protection requirements.
*. Coated with high molecular conductive polymer, low surface resistivity, stable performance, not affected by environmental temperature and humidity.
*. Light specific gravity: PET specific gravity 1.33 is 3.7% lower than PVC specific gravity 1.38
*. High strength: The strength of PET sheet is more than 20% higher than that of PVC sheet. It has better low-temperature impact resistance and can withstand -40% C without brittleness. Therefore, double-thin 10% film is usually used to replace PVC.
*. Good fold resistance: PET film will not show self-cracking creases like PVC, and it is more suitable for surface decoration such as documents.
*. PET sheet has high transparency (PVC sheet is bluish), especially the gloss is better than PVC sheet, which is more suitable for exquisite packaging.
Products are widely used in the production and packaging of electronic products.
The product features are as follows:
1. Stable, the surface resistance is in the range of 10 to 10 to 5 Ω (conductive), 10 to 6 to 10 to 9 Ω (anti-static), and it is not affected by the temperature and humidity of the environment.
Second, it is transparent and can be processed into a variety of colors.
Third, environmental protection, no toner. Thickness: 0.01-1.0mm
It has excellent wear resistance, recyclability, good followability during vacuum forming, stable surface resistance, and no gas and volatiles are discharged.
It has a strong protective effect on electronic components, and has achieved unprecedented transparency and permanent anti-static effects with advanced technology.

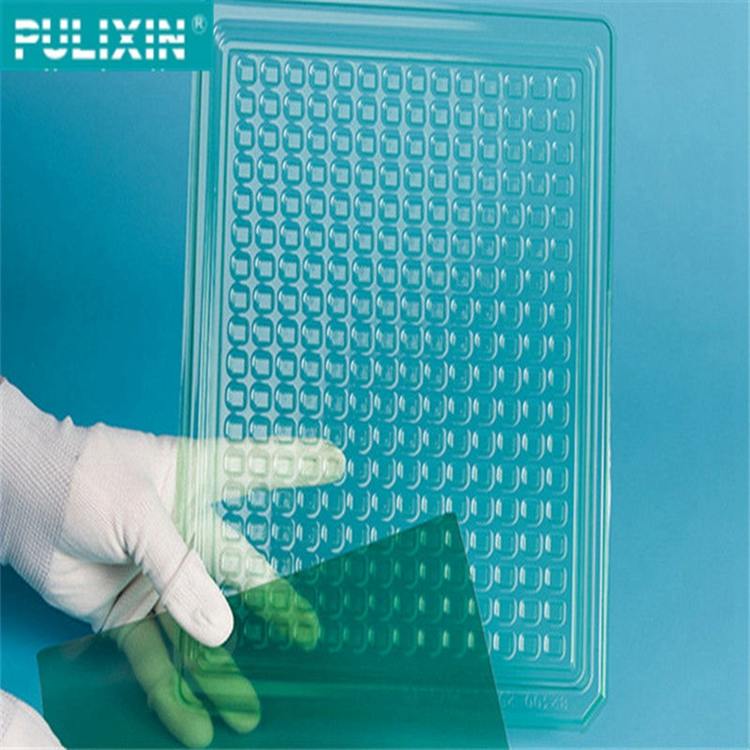

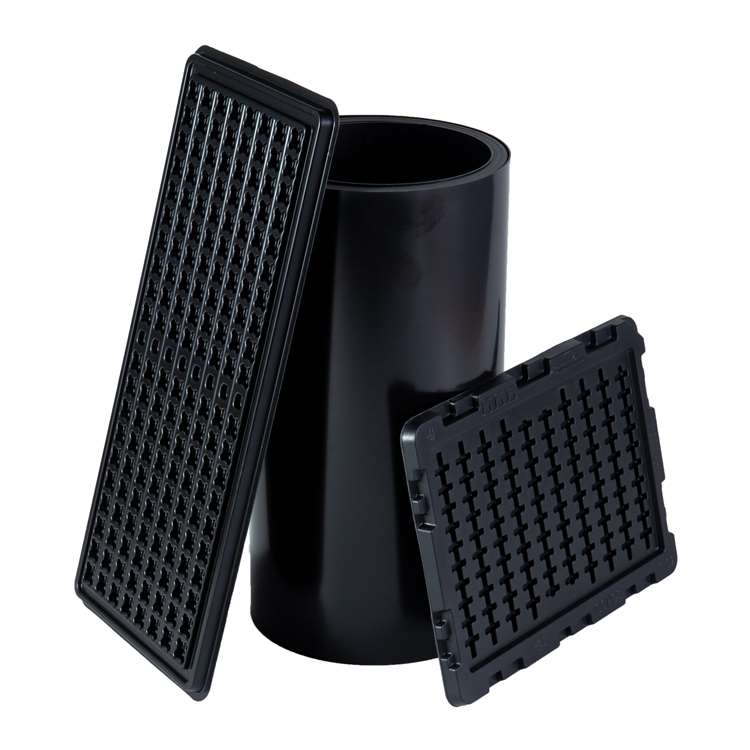

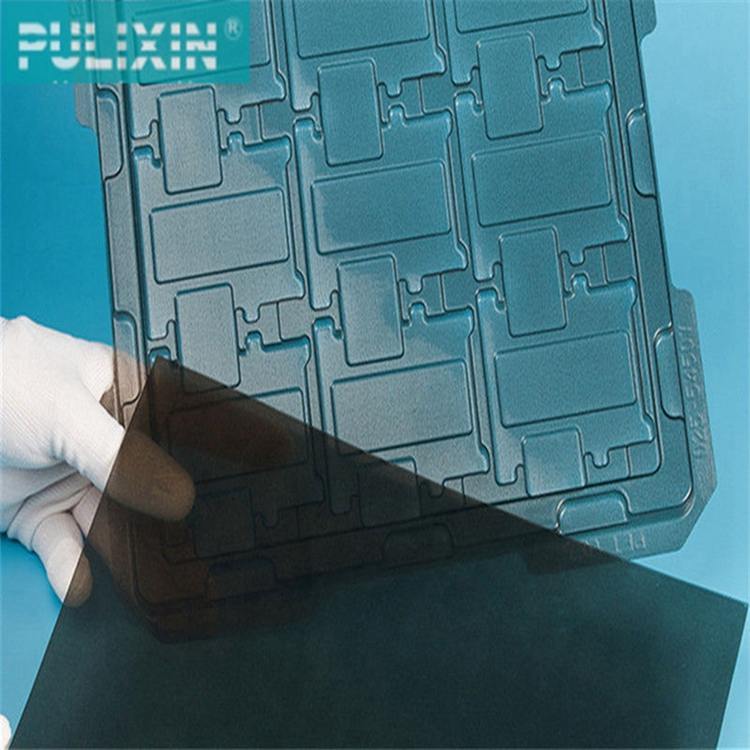

Uses ﹡IC tray ﹡LCD tray ﹡electronic parts tray ﹡FPC tray, etc.
Applications:
* Hard Disk Manufacturing
Today’s hard disk manufacturing industry has precision and sensitive electronic components in the electronics industry, which require clean and continuous ESD protection.
This product is used for the packaging, turnover and storage of hard disk heads and other precision components;
* Semiconductor manufacturing
The semiconductor industry has more stringent requirements for cleanliness than ESD protection in the process of handling wafers and disk drive media. As IC circuits continue to shrink, ESD protection is becoming more and more important. This product is used in the turnover and storage of chips and disk drive media;
* Electronic product assembly packaging
Since electronic products are already protected by a lot of ESD before they are assembled and packaged, in general, the requirements for ESD can be slightly reduced, requiring permanent static dissipation performance. This product is used to handle and transport electronic components, circuit boards and other components.
Specification of Conductive PET plastic sheet roll thermoforming electronics trays PET sheet roll
Product parameters
Parameters of Conductive PET plastic sheet roll thermoforming electronics trays PET sheet
Polyethylene terephthalate is the most important type of thermoplastic polyester. The English name is Polyethylene terephthalate, referred to as PET or PEIT (hereinafter referred to as PET), commonly known as polyester resin. The molar molecular weight of the repeating unit is 192g/mol. It is a condensation polymer of terephthalic acid and ethylene glycol. Together with PBT, it is collectively referred to as thermoplastic polyester, or saturated polyester. In 1946, the United Kingdom issued the first patent for preparing PET. In 1949, the British ICI formula completed the pilot test. However, after the United States DuPont purchased the patent, the production facility was established in 1953, the first in the world to realize industrialized production. In the early days, almost all PET was used for synthetic fibers (commonly known as polyester in our country, really good). Since the 1980s, PET has made breakthroughs in the development of engineering plastics. Nucleating agents and crystallization accelerators have been developed one after another. PET and PBT together as thermoplastic polyesters have become one of the five major engineering plastics.
PET is divided into fiber-grade polyester chips and non-fiber-grade polyester chips. ① Fiber-grade polyester is used to make polyester staple fiber and polyester filament, and is the raw material for polyester fiber enterprises to process fibers and related products. Polyester is the most productive variety in chemical fiber. ②Non-fiber grade polyester is also used in bottles, films, etc., which are widely used in the packaging industry, electronic appliances, medical and health, construction, automotive and other fields. Among them, packaging is the largest non-fiber application market for polyester, and it is also the most growing PET Fast field.
Advantages of PET as a packaging material:
1. It has good mechanical properties, impact strength is 3 to 5 times that of other films, and good folding resistance.
2. Resistance to oil, fat, dilute acid, dilute alkali, and most solvents.
3. It has excellent resistance to high and low temperatures. It can be used for a long time in the temperature range of 120°C, and can withstand high temperature of 150°C and low temperature of -70°C in short-term use, and the mechanical properties of high and low temperatures have little effect.
4. The gas and water vapor permeability is low, and it has excellent gas, water, oil and odor resistance.
5. High transparency, can block ultraviolet rays, and good gloss.
6. Non-toxic, tasteless, good hygiene and safety, and can be directly used for food packaging.
Characteristics of PET as a packaging material:
PET is a milky white or light yellow highly crystalline polymer with a smooth and shiny surface. Creep resistance, fatigue resistance, good abrasion resistance and dimensional stability, low abrasion and high hardness, have the greatest toughness among thermoplastics: good electrical insulation, low temperature influence, but poor corona resistance. Non-toxic, weather resistance, good chemical resistance stability, low water absorption, resistance to weak acids and organic solvents, but not immersed in hot water and alkali. PET resin has a high glass transition temperature, slow crystallization speed, long molding cycle, long molding cycle, large molding shrinkage, poor dimensional stability, and crystallization molding is brittle and low heat resistance. Through the improvement of nucleating agent and crystallization agent and glass fiber reinforcement,
In addition to the properties of PBT, PET has the following characteristics:
1. The heat distortion temperature and long-term use temperature are the highest among thermoplastic general engineering plastics;
2. The bending strength is 200MPa, the elastic modulus reaches 4000MPa, the creep and fatigue resistance are also very good, the surface hardness is high, and the mechanical properties are similar to thermoset plastics;
3. Since the ethylene glycol used in the production of PET is almost half the price of the butylene glycol used in the production of PBT, PET resin and reinforced PET are the cheapest among engineering plastics and have a high cost performance.
