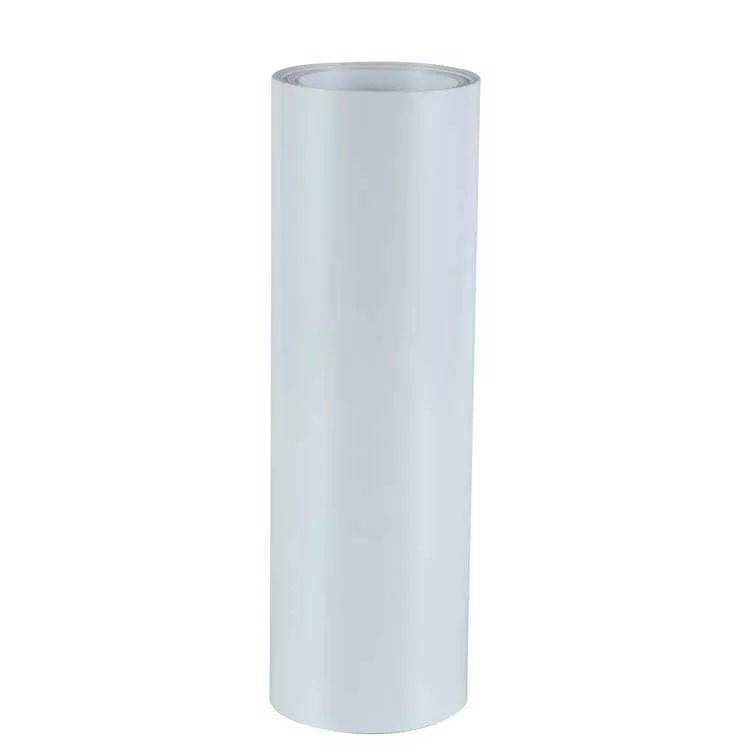

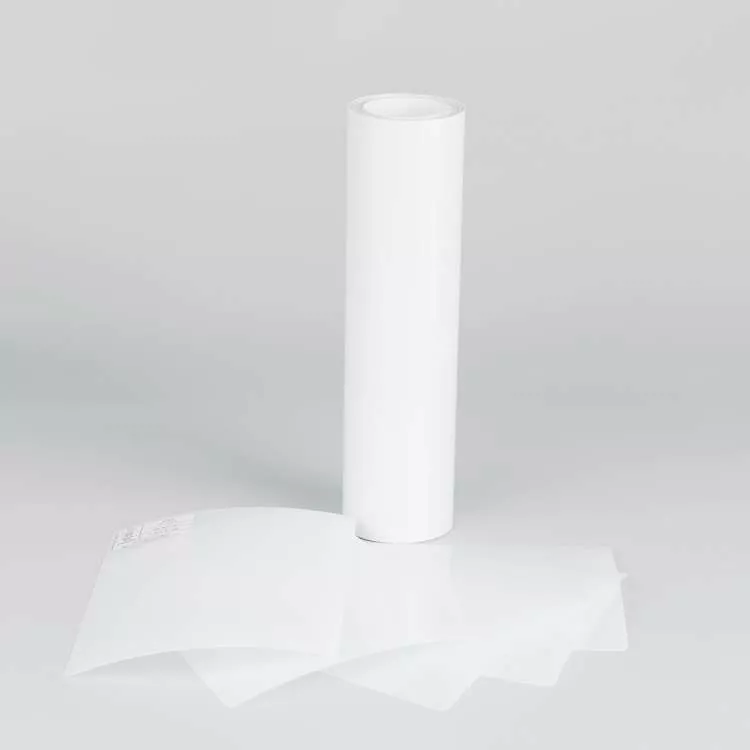

Conductive PS sheet Roll
Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted
- Brand: PULIXIN
- Origin: Shanghai, China
- MOQ: 5 tons
- Thickness: 0.3~2mm
- Width: 300~850mm
- Application: Thermoforming
- Send Inquiry
-
- Email: lindy@pulixin.com
- Phone: +8615221762039
- WhatApp
- Wechat
Description
Description of Conductive PS sheet Roll

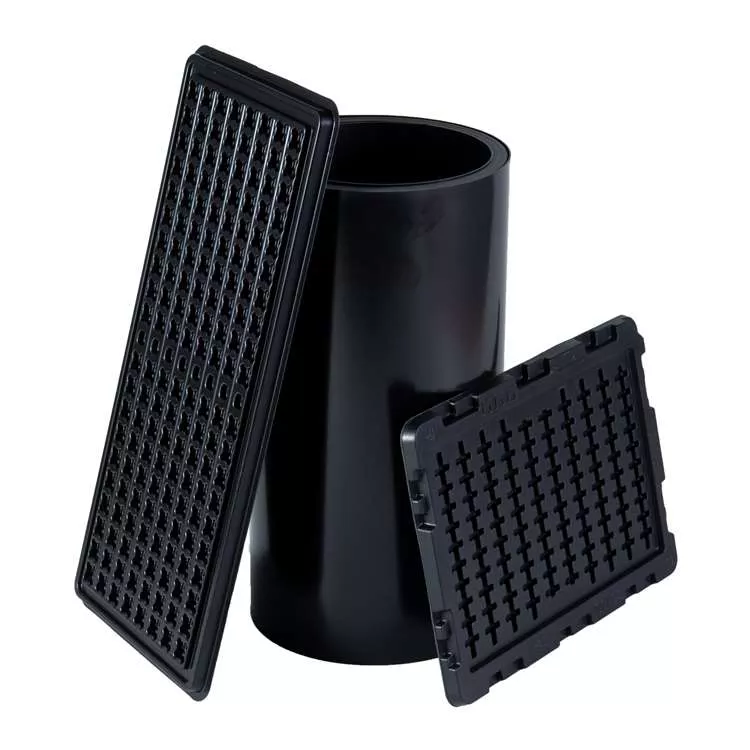

We can produce coated conductive PS sheet & roll, which is mainly applied for the thermoformed packaging of downstream markets in:
- Electronics
- Food trays
- Hardware & Tool
- Medical Devices
We can process PS sheet & roll with not only common function but also special functions of:
Coated Conductive
(a) the surface resistivity is 104 ~ 106Ω
(b) we can do the coated conductive function by cutting-edge coated printing (oily or water-based) technique to get perfect uniform conductive effect on every inch of PS sheet or roll
Specification of Conductive PS sheet Roll
1. Safe storage of ESD sensitive devices
2. Permanently static dissipative
3. No migration, no contamination
4. Humidity independent
5. Coating with Btree’s ESD agent
6. Color: Black&White
7. Recyclable
8. Available in rolls & plates.
9. Maximum width: 900mm, thickness: 0.3-2.0mm
1. Safe storage of ESD sensitive devices
2. Permanently static dissipative
3. No migration, no contamination
4. Humidity independent
5. Coating with Btree’s ESD agent
6. Color: Black&White
7. Recyclable
8. Available in rolls & plates.
9. Maximum width: 900mm, thickness: 0.3-2.0mm
Product parameters
Parameters of Conductive PS sheet Roll
| 测试项目 Test Item |
测试方法 Test method |
单位 Unit |
性能 Properties |
| 密度 Specific gravity |
ASTM D792 | g/cm3 | 1.04 |
| 冲击强度 Impact Strength |
ASTM D256 | mpa | 35 |
| 拉伸强度 Tensile Strength |
ASTM D638 | mpa | 29 |
| 热变形温度 Heat Deflection Temperature |
ASTM D648 | ℃ | 85 |
| 弯曲强度 Flexural Strength |
ASTM D790 | mpa | 36 |
| 颜色 COLOR |
Visual Inspection | / | White (Colorable) |
| 表面电阻 SURFACE RESISTANCE |
ASTM D257 | Ω | 1011 |
