High Impact Polystyrene Sheet for Thermoforming
Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted
- Brand: PULIXIN
- Origin: Shanghai, China
- MOQ: 5 tons
- Thickness: 0.3~2mm
- Width: 300~850mm
- Application: Thermoforming
- Send Inquiry
-
- Email: lindy@pulixin.com
- Phone: +8615221762039
- WhatApp
- Wechat
Brif Intro
High impact polystyrene sheet roll (high impact HIPS blister sheet roll) is a thermoplastic sheet modified from styrene and rubber. It has the characteristics of high impact strength and toughness, arbitrary coloring, molding processability, chemical corrosion resistance, and good electrical properties.
Specifications of high impact polystyrene sheet
| Product Name | High impact HIPS blister sheet roll |
|---|---|
| Material | HIPS vacuum forming material , 100% raw material |
| Color | Transparent,black,green or any customized color |
| Thickness Tolerance | According to GB (higher than GB) |
| Application | Vacuum forming packaging, Printing, Bending, Folding box, Cards,etc. |
| Width | 300~1400mm or Customized |
| Thickness | 0.15~3mm or Customized |
| Special Treatment | Metalized, Anti-UV, Waterproof, Antistatic, Anti-fog, Frosted, Cold resistance, Heat resistance, Double-sided Matte, Conductive. |
| Features | 1.High temperature resistance, not easily melted 2.Easy to peel off and no residue requirement 3.Printable, good inking effect 4.Widely used in food and drug industry 5.Uniform thickness, smooth surface/beautiful sand ripples 6.No grains, contamination control and good processing performance |
| Sample Time | 1-3 days |
| Delivery Methods | Ocean shipping ,air transportation, express,land transportation |
| Payment Term | Credit card ,T/T,L/C,Western Union,Paypal |
| Mass Production Lead Time | 3-15 days depend on order quantity |
| Certificate | ROHS,MSDS,TDS,SGS,ISO9001 |
| Core Diameter | 3 inch or 6 inch depend on customer requirement |
| Packing | Packing in rolls and plastic pallet,pp woven with PE film and strape on pallet for each roll |
Characteristics of high impact polystyrene sheet
High impact strength and toughness: are the main characteristics of HIPS blister sheet, which enables it to withstand greater impact and collision and is not easy to break.
Arbitrary coloring: HIPS blister sheet can be colored into various colors as needed to meet different usage requirements.
Good molding processability: HIPS blister sheet can be processed by a variety of methods, such as blister, injection molding, extrusion, etc., and has good molding.
Chemical corrosion resistance: HIPS blister sheet has good acid and alkali resistance and can withstand corrosion from a variety of chemicals.
Good electrical properties: HIPS blister sheet has good insulation and can be used to manufacture electrical components and parts.
Advantages of high impact polystyrene sheet
Easy to thermoform: HIPS blister sheet has good controllability during thermoforming, enabling the molding of complex shapes and details.
Strong durability: Due to its high impact resistance and mechanical strength, HIPS blister sheet performs well during use and is suitable for repeated use and long-term storage.
Lightweight: HIPS material is lighter, which helps reduce transportation and handling costs.
Environmental protection: HIPS is a recyclable material that can reduce environmental burden and meet the requirements of green environmental protection.
Diverse surface treatment: Various surface treatments and decorations such as coating, printing, metallization, etc. can be performed to meet different aesthetic and functional requirements.
Application of high impact HIPS blister sheet
High impact HIPS blister sheet is widely used in food packaging, electronic product packaging, medical device packaging, toy packaging, industrial parts packaging and other fields. Its high impact resistance and good molding properties make it an ideal choice for various packaging solutions.

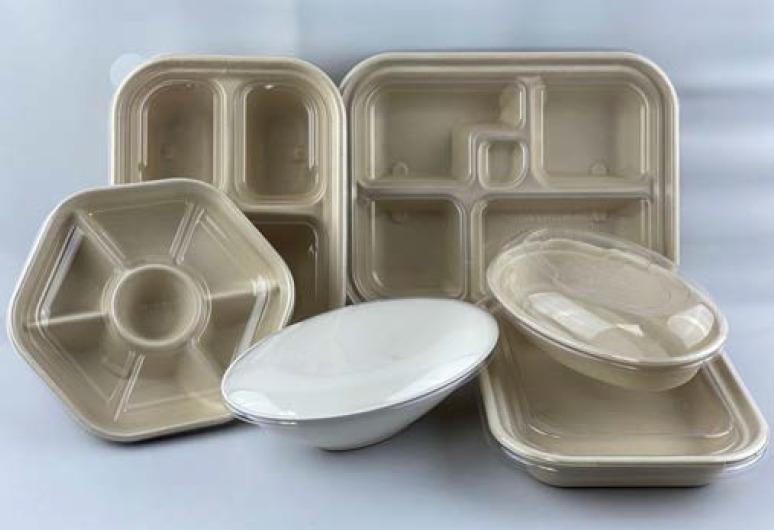

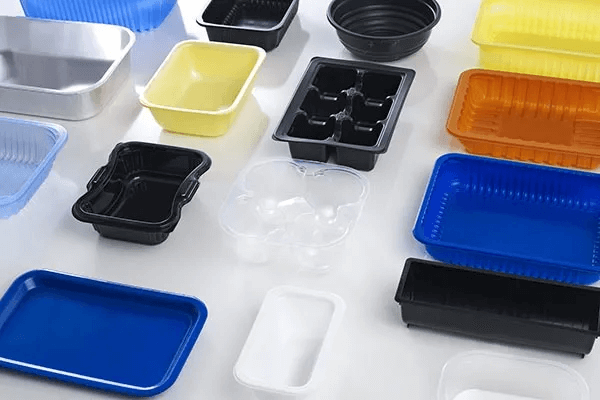

Food packaging: HIPS blister sheet can be used to make food trays, boxes, covers, etc., with good transparency and glossiness, which can effectively display food.
Daily necessities packaging: HIPS blister sheets can be used to make daily necessities packaging boxes, cosmetic boxes, gift boxes, etc., which can enhance the appearance and texture of the product and attract consumers’ attention.
Electronic product packaging: HIPS blister sheets can be used to make packaging for electronic products such as mobile phones and computers, with good antistatic and cushioning properties.
Toy packaging: HIPS blister sheets can be used to make toy packaging such as toy cars and building blocks, with good safety.
HIPS sheet we offer
| Sheet type | Width mm | Thickness mm | Color | Resistance value Ω |
|---|---|---|---|---|
| HIPS normal sheet | 200-800 | 0.3-2 | Any | / |
| High impact HIPS | Any | / | ||
| HIPS black conductive | 200-800 | 0.3-2 | Black | 10^4-10^6 |
| HIPS black semi-conductive | Black | 10^6-10^9 | ||
| HIPS black volume conductive | Black | 10^4-10^6 | ||
| HIPS polymer sheet | Any | 10^8 | ||
| HIPS anti-static sheet | Any | 10^9-10^11 | ||
| HIPS coated sheet | Any | 10^3-10^9 |
Production of high-impact HIPS blister sheets
● Raw material preparation:
High-impact HIPS resin: Select high-quality high-impact HIPS resin as the base material.
Additives: Add antioxidants, stabilizers, pigments, etc. as needed to improve material properties and appearance.
● Extrusion molding:
Mixing: Evenly mix HIPS resin and additives in a mixer.
Extrusion: The mixture passes through an extruder, melts at high temperature and is extruded into a sheet through a mold.
Cooling: The extruded sheet is quickly cooled and shaped by a cooling roller.
Trimming: Trim the cooled sheet to a standard size.
● Blister molding:
Preheating: Heat the HIPS sheet to an appropriate temperature to soften it.
Molding: Adsorb the softened sheet onto the mold through vacuum adsorption or compressed air to form the desired shape.
Cooling: Keep the molded sheet in the mold to cool until it hardens and sets again.
Demolding: Remove the cooled and set blister product from the mold.
● Post-processing:
Trimming: Remove excess edges and corners to obtain the final product.
Surface treatment: Perform surface printing, coating and other treatments as needed.
Company Information
| Company Profile | Company Type: Manufacturer |
| 1) Establish Year: 2009 | |
| 2) Start make export year: 2009 | |
| 3) Factory area: 6000 square meter | |
| 4) Patent: Own 39 Product Patents | |
| 5) Total Employees: 50–100 People | |
| 6) Production Line Capacity: 50000 Metric Tons/Year | |
| 7) No. of Production Lines: Above 10 | |
| 8) Certifications: Passed the ISO9001:2008 quality system authentication and ROHS authentication. | |
| If you want to find OEM Supplier in China, contact us ! If you want to find Competitive Price in China, contact us ! If you want to find Professional Conductive PP Sheet Factory in China, contact us ! If you want to find Responsible Partner who help you save trouble and time in program, contact us ! |
Purchase Notice
| Packing way | Packed in roll or flat sheet,50-150kg/roll or according to specific requests from clients. |
| Packing material | Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary. |
| Shipping marks | Neutral packing with printed marks. |
| Delivery time | 7~15 days since receipt of PO and down payment. |
| Freight | Sea(FCL & LCL) or air freight. |
| Special size | We provide cutting services for special sizes. |
| Payment Accepted | D/A, D/P, T/T, L/C, Westunion etc. |
FAQ
How to choose high-impact HIPS blister sheet?
When selecting high-impact HIPS blister sheets, the following factors should be considered:
Impact strength: Select HIPS blister sheets with corresponding impact strength according to the use requirements.
Size and shape: Select HIPS blister sheets with appropriate size and shape according to the actual application.
Color: Select HIPS blister sheets with appropriate color according to the needs.
Processing performance: Select HIPS blister sheets with corresponding processing performance according to the processing method.
Price: Consider the above factors comprehensively and select HIPS blister sheets with high cost performance.
